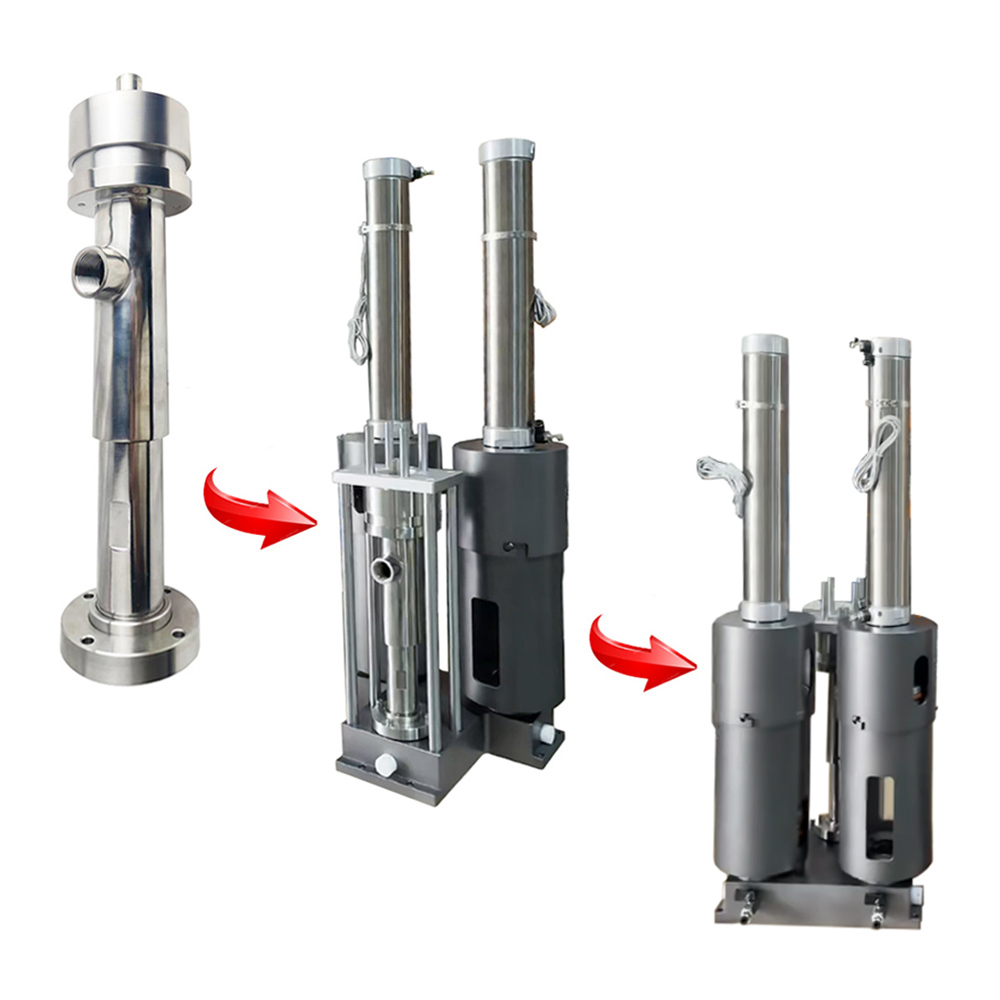

adhesive pump

Item Number:SC3cc–SC200cc

Dimensions(mm):L:305–705  ø:20–35

Weight:4.95–12kg

Output Pressure:18bar–24bar

Input Connection:G3/4″   G1″   G1 1/2″

Output Connection:G3/8″   G1″   G1 1/2″

Motor max(rpm)/min/:12-300rpm/min

recommended flow /second:0.13-0.5ml/s—50-20ml/s

Material Stator:FKM、EPDM、NBR

Material Screw:SUS304 SUS316

Product name: #adhesive pump #glue pump #dosing pump #Liquid glue pump #adhesive screw pump #glue transfer pump #mono pump   #dispensing pump #meter pump #chemistry pump #dosing volume pump #chemical metering pump #metering pumps #chemical dosing pump #chemical pump #dosing pump for chemicals

Standard-SC series adhesive screw pump



The Standard –SC series of metering and filling screw pump is designed for glue with high viscosity and chemical, pharmaceutical and other industries, can accurately convey and measure a synthetic pump, its structure is fully suitable for smooth and low pulsating transmission medium, corrosive and anti-corrosion chemicals, chemicals can be very well measured.

The Standard company SC series metering and filling screw pump contains less parts, is very easy to maintain and repair, and the price is also affordable.

Features of the Standard-SC Series dosing screw pump

(1). It is generally applicable to a variety of media (even acidic and alkaline media

(2). Continuous low pulsation transmission, not affected by pressure and viscosity

(3). The conveying capacity is proportional to the rotational speed, and can realize high-precision metering and conveying in the whole speed range.

(4). Maintenance-free and easy maintenance

(5). Compact structure and high efficiency

Wide Spectrum of Applications

The Standard-SC dosing screw Pump is used primarily for substances with the following properties:

(1). Products with or without solid particles

(2). Low to medium viscosity (up to 0-6000000cps)

(3). Thixotropic and dilatant

(4). Aggressive (pH 0-14)

(5). Lubricated or non-lubricated

Transportable medium

Natural and artificial polymers, anionic and cationic polyelectrolytes, iron and aluminum salts (such as ferric chloride), limewater, wastewater, suspensions, organic or inorganic acids or bases, etc

Standard SC series metering glue screw pump technical parameters chart

Art. No. Allowable SpeedOptimum SpeedRecommended Amount of GlueOutput PressureStarting Torque
SC-0.5cc12-300rpm15-60rpm0.13-0.5ml/s24bar
≥10nm
SC-1.5cc12-300rpm15-60rpm0.38-1.5ml/s18bar≥10nm
SC -3cc12-300rpm15-60rpm0.75-3ml/s18bar≥16nm
SC -6cc12-300rpm15-60rpm1.5-6ml/s18bar≥20nm
SC-12cc12-300rpm15-60rpm3-12ml/s18bar≥30nm
SC-24cc12-300rpm15-60rpm6-24ml/s18bar≥50nm
SC-48cc12-300rpm15-60rpm12-48ml/s18bar≥100nm
SC-96cc12-300rpm15-60rpm24-96ml/s18bar≥200nm
SC-200cc12-300rpm15-60rpm50-200ml/s18bar≥400nm

Note: The speed varies according to the characteristics of the medium. For the medium with high viscosity, high solid content, high abrasiveness and poor fluidity, low speed should be selected as far as possible. Please contact our staff for detailed selection (WhatsApp/ Wechat: 0086 18942424342 )

Stardard SC series metering glue screw pump outline dimensional drawing

Model No.

Size(A)Size(B)InletOutlet(C)Shaft diameter(D)Pin

Weight(kg)

SC-0.5cc

192305G3/4“G3/8“206*6

4.8

SC-1.5cc

230343G3/4“G3/8“206*6

4.9

SC -3cc

225340G3/4“G3/8“206*6

4.95

SC -6cc

245360G3/4“G3/8“206*6

5

SC-12cc

280395G3/4“G3/8“206*6

6.1

SC-24cc

365475G1“G1/2“206*6

7.8

SC-48cc

465580G1 1/2“G1“248*8

11.75

SC-96cc

540655G1 1/2“G1“248*8

16.5

SC-200cc645765G1 1/2“G1 1/2“3510*10

21.5

The maintenance of vulnerable parts

(1). Rotor: Can assemble advanced chrome plated steel rotor for conveying abrasive or non- lubricating medium

(2). Stator: Vulcanized tube, sealed at both ends, made of a variety of rubber, plastic and metal materials Tube vulcanization, both sides sealed, using a variety of rubber, plastic and metal materials.

(3). Mechanical seal cavity: The seamless mechanical seal is located in the fluid medium to ensure the permanent flushing of the medium to prevent the deposition of solid materials.

(4). Suction and discharge: The suction chamber and discharge body are made of SUS304.SUS316L material, which makes it easier to install and disassemble the equipment through the flange. Import and export dimensions can be changed according to customer requirements.

(5). Drive device SEW gear motor: the standard-equipped gear motor is Germany brand SEW or NORD, you also can choose other brands.

The advantage of Standard

The company develops and manufactures high-precision, high-quality screw pumps for a wide range of applications. Our advantage is detailed patented technology and production process control process, in order to achieve the highest quality standards, we have strict control and inspection of each step.

FAQ

1.What products does Standard offer ?

(1). Standard offers screw pump, Screw pump accessories, and the global solution of the fluid system product.

(2). The product range summary of Standard Progressive cavity pumps for conveying and metering low to highly viscous media with or without solids Macerators for macerating solid and fibrous components in the medium

(3). Control systems for monitoring, regulating and controlling processes

2.Does Standard supply custom-made pumps ?

Yes, that’s our specialty. Our modular system with varying designs and material combinations allows customization for almost every application. This means we develop the optimal technical and economical solution for your requirements.

3.Can Standard spare parts be ordered online ?

Yes, Standard screw pumps and spare parts as well as other brands universal parts can be ordered online. For order please contact us. ( WhatsApp/ Wechat/ Telephone: 0086 18942424342 )

4.How fast can my Standard pump be delivered ?

Normally, standard pumps are delivered in 2 to 6 weeks. In urgent cases, delivery times between 2 to 6 days may be possible. Please contact us . ( WhatsApp/ Wechat/ Telephone: 0086 18942424342 )

5.Product quality guarantee

According to the International standards, Pump 1 year warranty, spare parts 6 months warranty

Buyers Attention

(1). Are Standard pumps allowed to run dry ?

No, the conveying elements are permanently in contact with one another, which means that dry running must be avoided in progressive cavity pumps. The Standard dry-running protection device offers reliable protection.

(2). At what temperatures can Standard pumps be used ?

Standard progressive cavity pumps can be used at temperatures from 0 °C to 90° C.
